Introduction

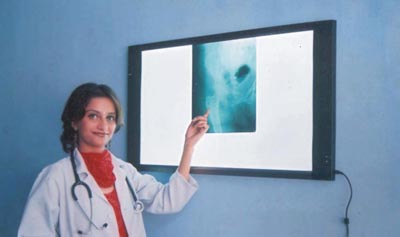

We introduce our self as manufacturers of the slimmest available medical X-ray view box for the first time in India. The view box is just one inch thick, it is based on the latest LED LCD Active Matrix TFT Technology. Available in Edgelit and Backlit Technology.

The Medixview X-ray view box emits and produces a blue-type light more suitable for reading x-ray films.

The MediXView X-ray view box emits and produces a blue-type light more suitable for reading x-ray films. The latest LED LCD MediXView is flicker free, thereby reducing eye-fatigue even if watched for a longer time. The MediXView emits a very low level of heat thus reducing the need to clean and replace the lamp as frequently. The LED light source used by MediXView, lasts for 100,000 hours without needing replacement

Medixview uses the ultra modern technology.
MediXView uses the ultra modern technology and as used in laptop computers thus facilitating even distribution of light. There is 90% uniformity of light distribution in the MediXView X-ray view box; this helps in accurate film reading.

Specifications for N-Series (LED Edge-Lit):

Parameter

MXV-1B/N

MXV-2B/N

MXV-3B/N

MXV-4B/N

Dimensions
(mm)

Frame (L x H x T)

506 x 500 x 25

884 x 500 x 25

1261 x 500 x >25

1638 x 500 x >25

Viewing Area (W x H)

362 x 441

742 x 441

1123 x 441

1502 x 441

Power Consumption

20W

40W

60W

80W

Light Source

LED

LED

LED

LED

Power Supply Input

AC100-240V

50/60Hz

AC100-240V

50/60Hz

AC100-240V

50/60Hz

AC100-240V

50/60Hz

Brightness (LUX)

>10,000

>10,000

>10,000

>10,000

Net Weight (Kgs)

5

9

15

20

Specifications for J-Series (LED Back-Lit):

Parameter

MXV-1B/J

MXV-2B/J

MXV-3B/J

MXV-4B/J

Dimensions
(mm)

Frame (L x H x T)

500 x 530 x 45

858 x 530 x 45

1213 x 530 x 45

1571 x 530 x 45

Viewing Area (W x H)

356 x 428

712 x 428

1068 x 428

1424 x 428

Power Consumption

14W

28W

42W

56W

Light Source

LED

LED

LED

LED

Power Supply Input

AC100-240V

50/60Hz

AC100-240V

50/60Hz

AC100-240V

50/60Hz

AC100-240V

50/60Hz

Brightness (LUX)

>11,000

>11,000

>11,000

>11,000

Net Weight (Kgs) 3 6 8 12
The Medixview box far out performs Conventional View Boxes on a number of aspects including efficiency, cost effectiveness and design.

Single film viewing unit with an optional mountable stand:



with_stand
